Description

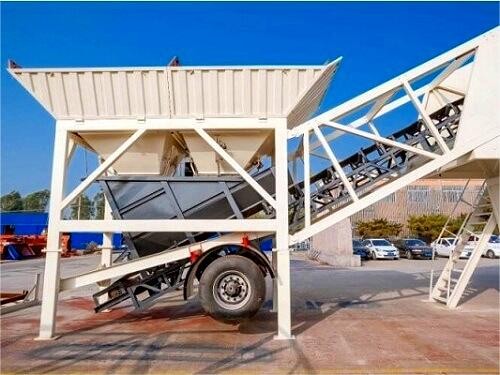

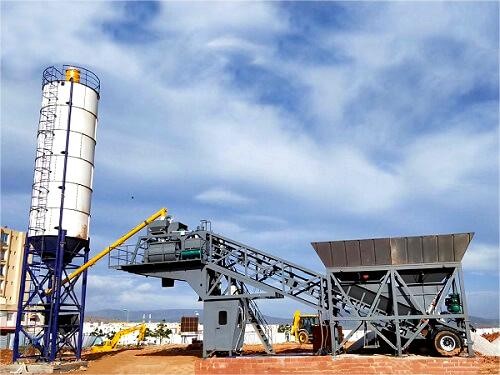

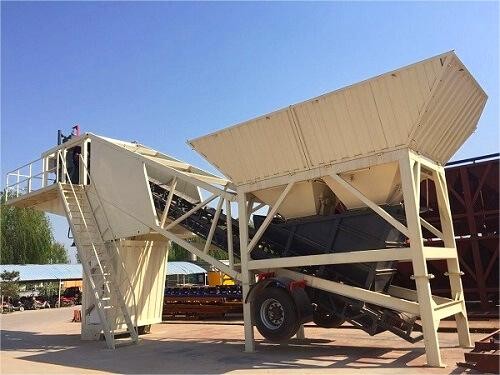

YHZS series mobile concrete batching plant is a new type, which owned great unique configuration. Free moving is biggest advantage, provides a great convenience for project. YHZS Mobile Concrete Batching Plant is a movable concrete production equipment that can be built and put into production on job site. It only takes few days to install and you can start producing concrete within a few hours after the plant is assembled.
It’s best choice for produce ready-mixed concrete in short-term projects.
This series of YHZS MOBILE concrete batching plant is equipped with twin shaft concrete mixer, PL aggregate batcher, weighing system, cement silo, screw conveyor and other parts.
Main Parts of Portable Concrete Batching Plant
1) Twin Shaft Concrete Mixer
2) Aggregate Batching Machine
3) Belt Conveyor Delivery System
4) Weghing System (Cement, Water, Liquid Additive)
5) Bolted Cement Silo
6) Cement Screw Conveyor
7) Automatic Control System
8) Walking System
Convenient to move: The mobile plant is integrated on a towable chassis with 40km/h which make it quite easy to move.
Foundation-free: It don’t require poured foundations and able to be placed on almost any surface.
Quick installation and disassembly: It adopts compact new design without foundation,3-5 days could be finish installition.
Specification of Portable Concrete Plant
Capacity: 25m3/h, 35m3/h, 50m3/h,75m3/h
Concrete mixer: JS500, JS750, JS1000, JS1500
PL Batcher: PL800, PL1200, PL1600, PL2400
Control system: Automatic control
Greencon mobile batching plant adopts compact design, it can be transported by container, or hauling by trailer. Due to its free-foundation and quick installation, the mobile concrete batching plant can adapt to various harsh construction sites. In general, it is widely used in road projects, port construction, channel construction, etc.
